CSE510 Deep Reinforcement Learning (Lecture 10)

Deep Q-network (DQN)

Network input = Observation history

  • Window of previous screen shots in Atari

Network output = One output node per action (returns Q-value)

Stability issues of DQN

Naïve Q-learning oscillates or diverges with neural nets

Data is sequential and successive samples are correlated (time-correlated)

  • Correlations present in the sequence of observations
  • Correlations between the estimated value and the target values
  • Forget previous experiences and overfit similar correlated samples

Policy changes rapidly with slight changes to Q-values

  • Policy may oscillate
  • Distribution of data can swing from one extreme to another

Scale of rewards and Q-values is unknown

  • Gradients can be unstable when back-propagated

Deadly Triad in Reinforcement Learning

Off-policy learning

  • (learning the expected reward changes of policy change instead of the optimal policy)

Function approximation

  • (usually with supervised learning)
  • Q(s,a)←fθ(s,a)Q(s,a)\gets f_\theta(s,a)

Bootstrapping

  • (self-reference, update new function from itself)
  • Q(s,a)←r(s,a)+γmax⁡a′∈AQ(s′,a′)Q(s,a)\gets r(s,a)+\gamma \max_{a'\in A} Q(s',a')

Stable Solutions for DQN

DQN provides a stable solution to deep value-based RL

  1. Experience replay
  2. Freeze target Q-network
  3. Clip rewards to sensible range

Experience replay

To remove correlations, build dataset from agent’s experience

  • Take action ata_t
  • Store transition (st,at,rt,st+1)(s_t, a_t, r_t, s_{t+1}) in replay memory DD
  • Sample random mini-batch of transitions (s,a,r,s′)(s,a,r,s') from replay memory DD
  • Optimize Mean Squared Error between Q-network and Q-learning target
Li(θi)=E(s,a,r,s′)∼U(D)[(r+γmax⁡a′∈AQ(s′,a′;θi−)−Q(s,a;θi))2]L_i(\theta_i) = \mathbb{E}_{(s,a,r,s') \sim U(D)} \left[ \left( r+\gamma \max_{a'\in A} Q(s',a';\theta_i^-)-Q(s,a;\theta_i) \right)^2 \right]

Here U(D)U(D) is the uniform distribution over the replay memory DD.

Fixed Target Q-Network

To avoid oscillations, fix parameters used in Q- learning target

  • Compute Q-learning target w.r.t old, fixed parameters
  • Optimize MSE between Q-learning targets and Q-network
  • Periodically update target Q-network parameters

Reward/Value Range

  • To limit impact of any one update, control the reward / value range
  • DQN clips the rewards to [−1,+1][-1, +1]
    • Prevents too large Q-values
    • Ensures gradients are well-conditioned

DQN Implementation

Preprocessing

  • Raw images: 210×160210\times 160 pixel images with 128-color palette
  • Rescaled images: 84×8484\times 84
  • Input: 84×84×484\times 84\times 4 (4 most recent frames)

Training

DQN source code: sites.google.com/a/deepmind.com/

  • 49 Atari 2600 games
  • Use RMSProp algorithms with minibatches 32
  • Use 50 million frames (38 days)
  • Replay memory contains 1 million recent frames
  • Agent select actions on every 4th frames

Evaluation

  • Agent plays each games 30 times for 5 min with random initial conditions
  • Human plays the games in the same scenarios
  • Random agent play in the same scenarios to obtain baseline performance

DeepMind Atari

Beat human players in 49 out of 49 games

Strengths:

  • Quick-moving, short-horizon games
  • Pinball (2539%)

Weakness:

  • Long-horizon games that do not converge
  • Walk-around games
  • Montezuma’s revenge

DQN Summary

  • Deep Q-network agent can learn successful policies directly from high-dimensional input using end-to-end reinforcement learning

  • The algorithm achieve a level surpassing professional human games tester across 49 games

Extensions of DQN

  • Double Q-learning for fighting maximization bias
  • Prioritized experience replay
  • Dueling Q networks
  • Multistep returns
  • Distributed DQN

Double Q-learning for fighting maximization bias

Maximization Bias for Q-learning

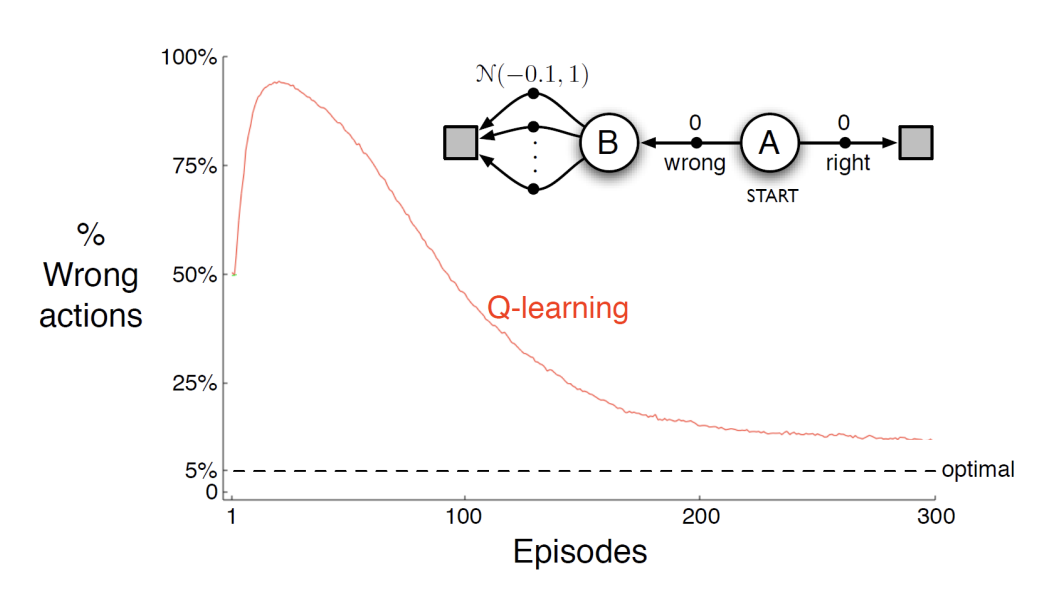

Maximization Bias of Q-learning

False signals from N(0.1,1)\mathcal{N}(0.1,1), may have few positive results from random noise. (However, in the long run, it will converge to the expected negative value.)

Double Q-learning

(Hado van Hasselt 2010)

Train 2 action-value functions, Q1 and Q2

Do Q-learning on both, but

  • never on the same time steps (Q1 and Q2 are indep.)
  • pick Q1 or Q2 at random to be updated on each step

If updating Q1, use Q2 for the value of the next state:

Q1(St,At)←Q1(St,At)+α(Rt+1+γQ2(St+1,arg⁡max⁡a′∈AQ1(St+1,a′))−Q1(St,At))Q_1(S_t,A_t) \gets Q_1(S_t,A_t) + \alpha (R_{t+1} + \gamma Q_2(S_{t+1}, \arg\max_{a'\in A} Q_1(S_{t+1},a')) - Q_1(S_t,A_t))

Action selections are (say) ϵ\epsilon-greedy with respect to the sum of Q1 and Q2. (unbiased estimation and same convergence as Q-learning)

Drawbacks:

  • More computationally expensive (only one function is trained at a time)
Initialize Q1 and Q2
For each episode:
    Initialize state
    For each step:
        Choose $A$ from $S$ using policy derived from Q1 and Q2
        Take action $A$, observe $R$ and $S'$
        With probability $0.5$, update Q1:
            $Q1(S,A) \gets Q1(S,A) + \alpha (R + \gamma Q2(S', \arg\max_{a'\in A} Q1(S',a')) - Q1(S,A))$
        Otherwise, update Q2:
            $Q2(S,A) \gets Q2(S,A) + \alpha (R + \gamma Q1(S', \arg\max_{a'\in A} Q2(S',a')) - Q2(S,A))$
        $S \gets S'$
    End for
End for

Double DQN

(van Hasselt, Guez, Silver, 2015)

A better implementation of Double Q-learning.

  • Dealing with maximization bias of Q-Learning
  • Current Q-network ww is used to select actions
  • Older Q-network w−w^- is used to evaluate actions
l=(r+γQ(s′,arg⁡max⁡a′∈AQ(s′,a′;w);w−)−Q(s,a;w))2l=\left(r+\gamma Q(s', \arg\max_{a'\in A} Q(s',a';w);w^-) - Q(s,a;w)\right)^2

Here arg⁡max⁡a′∈AQ(s′,a′;w)\arg\max_{a'\in A} Q(s',a';w) is the action selected by the current Q-network ww.

Q(s′,arg⁡max⁡a′∈AQ(s′,a′;w);w−)Q(s', \arg\max_{a'\in A} Q(s',a';w);w^-) is the action evaluation by the older Q-network w−w^-.

Prioritized Experience Replay

(Schaul, Quan, Antonoglou, Silver, ICLR 2016)

Weight experience according to “surprise” (or error)

  • Store experience in priority queue according to DQN error

    ∣r+γarg⁡max⁡a′∈AQ(s′,a′,w−)−Q(s,a,w)∣\left|r+\gamma \arg\max_{a'\in A} Q(s',a',w^-)-Q(s,a,w)\right|

  • Stochastic Prioritization

    P(i)=piα∑kpkαP(i)=\frac{p_i^\alpha}{\sum_k p_k^\alpha}
    • pip_i is proportional to the DQN error

  • α\alpha determines how much prioritization is used, with α=0\alpha = 0 corresponding to the uniform case.

Dueling Q networks

(Wang et.al., ICML, 2016)

  • Split Q-network into two channels

    • Action-independent value function V(s;w)V(s; w): measures how good is the state ss

    • Action-dependent advantage function A(s,a;w)A(s, a; w): measure how much better is action aa than the average action in state ss

      Q(s,a;w)=V(s;w)+A(s,a;w)Q(s,a; w) = V(s; w) + A(s, a; w)

  • Advantage function is defined as:

    Aπ(s,a)=Qπ(s,a)−Vπ(s)A^\pi(s, a) = Q^\pi(s, a) - V^\pi(s)

The value stream learns to pay attention to the road

The advantage stream: pay attention only when there are cars immediately in front, so as to avoid collisions

Multistep returns

Truncated n-step return from a state sts_t

Rtn=∑i=0n−1γt(k)Rt+k+1R^{n}_t = \sum_{i=0}^{n-1} \gamma^{(k)}_t R_{t+k+1}

Multistep Q-learning update rule:

I=(Rtn+γt(n)max⁡a′∈AQ(st+n,a′;w)−Q(s,a,w))2I=\left(R^{n}_t + \gamma^{(n)}_t \max_{a'\in A} Q(s_{t+n},a';w)-Q(s,a,w)\right)^2

Singlestep Q-learning update rule:

I=(r+γmax⁡a′∈AQ(s′,a′;w)−Q(s,a,w))2I=\left(r+\gamma \max_{a'\in A} Q(s',a';w)-Q(s,a,w)\right)^2

Distributed DQN

  • Separating Learning from Acting
  • Distributing hundreds of actors over CPUs
  • Advantages: better harnessing computation, local priority evaluation, better exploration

Distributed DQN with Recurrent Experience Replay (R2D2)

Providing an LSTM layer after the convolutional stack

  • To deal with partial observability

Other tricks:

  • prioritized distributed replay
  • n-step double Q-learning (with n = 5)
  • generating experience by a large number of actors (typically 256)
  • learning from batches of replayed experience by a single learner

Agent 57

link to paper
